Gösterge Kullanımı

7 Segment Display Kullanımı

    Amacımız Arduino ya yüklediğimiz  program ile 0 dan 9 a kadar saymaktır.

Gerekli olan malzemelerimiz:

• 1 X Arduıno
• 1 X Anot Display
• 1 X Breadboard
• 1 X 220ohm direnç

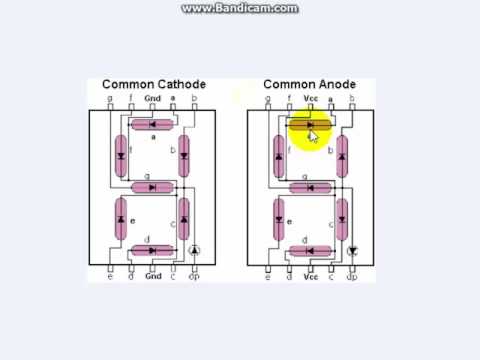

     İlk olarak resimde görüldüğü gibi devremizi kuruyoruz.

 Kodumuz ise;

[code]

 int a =1;

 int b =2;

 int c =3;

 int d =4;

 int e =5;

 int f =6;

 int g =7;

 int dot =8;

 int cntr =0;

void setup() {

  pinMode(a, OUTPUT);

  pinMode(b, OUTPUT);

  pinMode(c, OUTPUT);

  pinMode(d, OUTPUT);

  pinMode(e, OUTPUT);

  pinMode(f, OUTPUT);

  pinMode(g, OUTPUT);

  pinMode(dot, OUTPUT);

  digitalWrite(dot,LOW);

}

void loop() {

  if(cntr == 0)

  {

    digitalWrite(a,LOW);

    digitalWrite(b,LOW);

    digitalWrite(c,LOW);

    digitalWrite(d,LOW);

    digitalWrite(e,LOW);

    digitalWrite(f,LOW);

    digitalWrite(g,HIGH);// 0 yazdırmak icin g LED'ini söndürdük.

  }

  else if(cntr == 1)

  {

    digitalWrite(a,HIGH);

    digitalWrite(b,LOW);

    digitalWrite(c,LOW);

    digitalWrite(d,HIGH);

    digitalWrite(e,HIGH);

    digitalWrite(f,HIGH);

    digitalWrite(g,HIGH);

  }

  else if(cntr == 2)

  {

    digitalWrite(a,LOW);

    digitalWrite(b,LOW);

    digitalWrite(c,HIGH);

    digitalWrite(d,LOW);

    digitalWrite(e,LOW);

    digitalWrite(f,HIGH);

    digitalWrite(g,LOW);

  }

  else if(cntr == 3)

  {

    digitalWrite(a,LOW);

    digitalWrite(b,LOW);

    digitalWrite(c,LOW);

    digitalWrite(d,LOW);

    digitalWrite(e,HIGH);

    digitalWrite(f,HIGH);

    digitalWrite(g,LOW);

  }

  else if(cntr == 4)

  {

    digitalWrite(a,HIGH);

    digitalWrite(b,LOW);

    digitalWrite(c,LOW);

    digitalWrite(d,HIGH);

    digitalWrite(e,HIGH);

    digitalWrite(f,LOW);

    digitalWrite(g,LOW);

  }

  else if(cntr == 5)

  {

    digitalWrite(a,LOW);

    digitalWrite(b,HIGH);

    digitalWrite(c,LOW);

    digitalWrite(d,LOW);

    digitalWrite(e,HIGH);

    digitalWrite(f,LOW);

    digitalWrite(g,LOW);

  }

    else if(cntr == 6)

  {

    digitalWrite(a,HIGH);

    digitalWrite(b,HIGH);

    digitalWrite(c,LOW);

    digitalWrite(d,LOW);

    digitalWrite(e,LOW);

    digitalWrite(f,LOW);

    digitalWrite(g,LOW);

  }

    else if(cntr == 7)

  {

    digitalWrite(a,LOW);

    digitalWrite(b,LOW);

    digitalWrite(c,LOW);

    digitalWrite(d,HIGH);

    digitalWrite(e,HIGH);

    digitalWrite(f,LOW);

    digitalWrite(g,HIGH);

  }

    else if(cntr == 8)

  {

    digitalWrite(a,LOW);

    digitalWrite(b,LOW);

    digitalWrite(c,LOW);

    digitalWrite(d,LOW);

    digitalWrite(e,LOW);

    digitalWrite(f,LOW);

    digitalWrite(g,LOW);

  }

  else

  {

    digitalWrite(a,LOW);

    digitalWrite(b,LOW);

    digitalWrite(c,LOW);

    digitalWrite(d,LOW);

    digitalWrite(e,HIGH);

    digitalWrite(f,LOW);

    digitalWrite(g,LOW);

  }

  cntr = cntr +1;

  if(cntr == 10)

  {

    cntr = 0;

  }

  delay(1000);

}

[/code]
